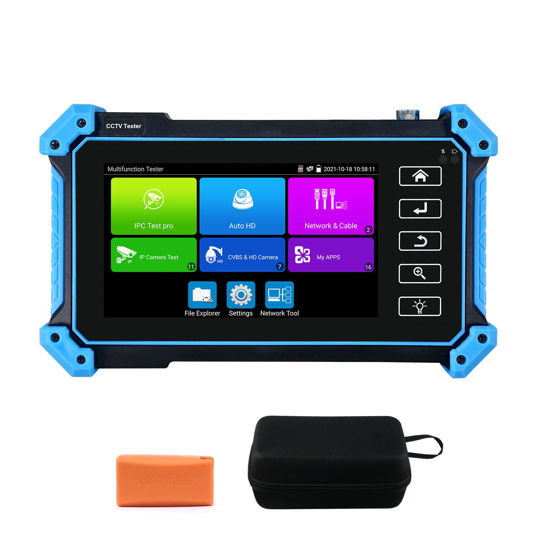

WANLUTECH CCTV Camera Tester:
● 5.4 inch IPS touch screen, 1920*1080 resolutions
● H.265 & H .264 IP, 4K video display via mainstream
● 8MP TVI AHD CVI Camera tester
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.
● VGA input, up to 1920 x 1200P 60FPS; HDMI Input, up to 4K 30FPS
● Rapid OVIF, Auto log in and display image, create testing report
● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIK and DH cameras. Jump to OVIF interface and test tools.
● AXIS, Hik camera test, enter OVIF app, input username and password to test
● HIK test tool, support batch activate HIK cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
● DH test tool, support batch activate DH cameras and modify IP address, user name and password. Self-defined modify channel name.
● IP and analog display image at the same time
● IPC TEST (Non-OVIF test)
● CVBS camera test, PTZ controller
● DC12V/3A power output, camera can be powered from DC 12 Voltage.
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Cable Test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of RJ45 cable connector.
● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report.
