Features
USB to RS485 communication
Adopt original FT232RL, fast communicating, stable and reliable, better compatibility
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
3 LEDs for indicating the power and transceiver status
Specifications
Product type: industrial converter
Baudrate: 300-921600bps
Host port: USB
Device port: RS485
1) USB
Operating voltage: 5V
Connector: USB-A
Protection: 200mA self-recovery fuse, ESD protection
Transmission distance: about 5m
2) RS485
Connector: screw terminal
Pins: A+, B-, GND
Direction control: hardware automatic control
Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance: about 1200m (low rate)
Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
3) LED indicators
PWR: red power indicator, light up when there is USB connection and voltage is detected
TXD: red TX indicator, light up when the USB port sends data
RXD: red RX indicator, light up when the device ports send data back
4) Operating environment: Temperature: -15℃ ~ 70℃
Humidity: 5%RH ~ 95%RH
Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP
User guide/Driver installation/Development Resources
bit.ly/3H9CVqY

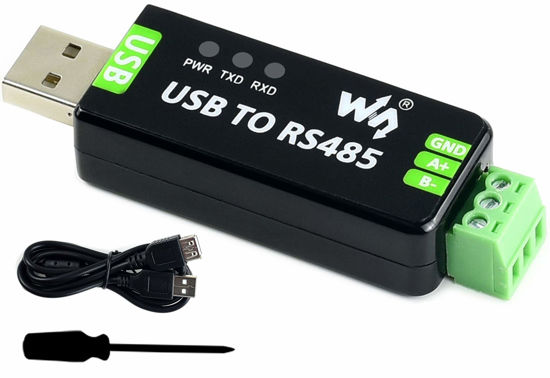

PACKAGE CONTENT
1.USB TO RS485 x1
2.USB-A male to female cable x1
3.Screwdriver x1
FAQ
Question:What should I do if the RS485 short-range communication is abnormal?
Answer: Remove the 120 ohm termination matching resistor from RS485.
