WAVLINK Wi-Fi 6E AX5400 PCIe Tri-band WiFi Adapter--Soaring to New Height!

The WAVLINK Tri-Band PCI-E card is an AX5400 wireless adapter designed for desktops, offering the latest Bluetooth 5.3 support. This wireless adapter provides a stable signal, high-speed rates, and superior performance for your desktop system. It complies with the 802.11ax specification, allowing it to support the 2.4GHz, 5GHz, and 6GHz bands. Equipped with 1024-QAM and MU-MIMO technology, the WN675X3-C delivers wireless signals faster and more effectively when used in conjunction with an MU-MIMO compatible router. Experience enhanced connectivity and optimized wireless performance with this advanced wireless adapter.

Latest Bluetooth 5.3

Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage than BT4.2. Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard.

Compatible OS

Support Windows 10/11 64-bit, Linux

*Please note that to utilize 6GHz band, the user must be on Windows 11 version.

WPA3 Security

The latest WiFi security protocol, WPA3, brings new capabilities to improve cyber security. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.

Robust Connection with Dual High-Gain Antennas

Two 5dBi high-performance antennas extend your existing WiFi reception capabilities by allowing you to stream throughout your home.

Advanced Heat Sink for Better Stability

The networking card is equipped with an advanced heat sink that effectively dissipates the heat generated by the adapter. This feature not only enhances performance and stability but also contributes to extending the lifespan of the adapter.

Dual Brackets

In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Important Note

We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.

Specification

Product Model: WN675X3-C(chipset: Intel AX210)

Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 2400Mbps

Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax

Frequency Band: 2.4GHz, 5GHz, 6GHz

Technical Support: MU-MIMO,OFDMA, BSS Coloring, 1024QAM, Target Wake Time(TWT)

Support System: Win 11/10 (64 bit), Linux

Bluetooth Version: Bluetooth 5.3

Interface: Compatible with PCI-E X1/X4/X8/X16

Wireless Security: WPA2/WPA3, WPA2-PSK encryption

Package Contents

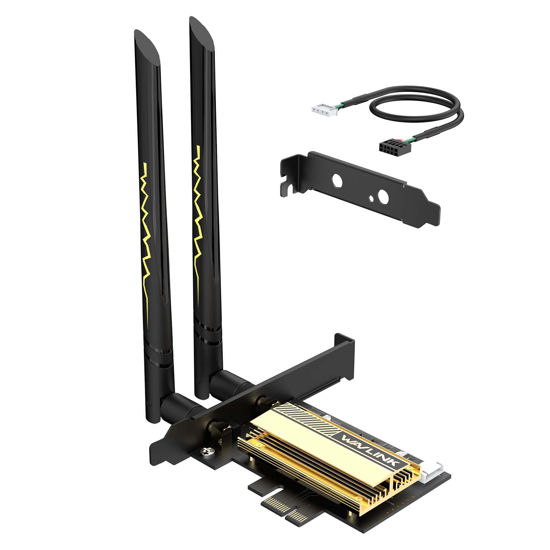

-1x WiFi 6E AX5400 PCIe Adapter

-1x Bluetooth Cable

-2x External Antenna

-1x Low Profile Bracket

-3x Screws

-1x Drivers Download Card

-1x User Manual

Warm Tips

1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.

2. Recommended to use a wifi6 or wifi6e compatible router for faster wireless speed and better network performance of our PCIE wifi adapter.

3. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).

4. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.

5. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).

6. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.

7. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.
