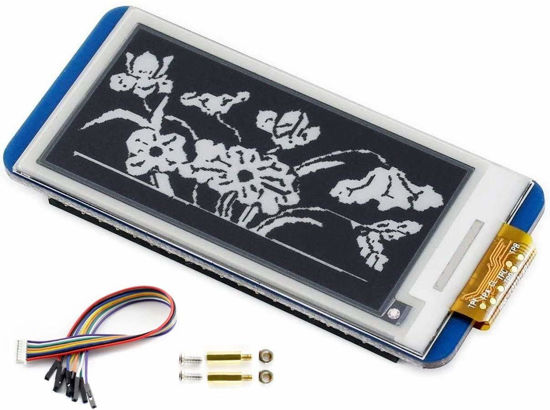

250x122, 2.13inch E-Ink display HAT V3 Version for Raspberry Pi,Jetson Nano,SPI interface

Overview
This is an E-Ink display HAT V3 Version for Raspberry Pi,Jetson Nano, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface,
supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as
shelf label, industrial instrument, and so on.

Specifications
Operating voltage: 3.3V/5V
Interface: SPI
Outline dimension: 65mm × 30.2mm
Display size: 23.71mm × 48.55mm
Dot pitch: 0.194 × 0.194
Resolution: 250 × 122
Display color: black, white
Grey level: 2
Partial refresh time: 0.3s
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

Interface
VCC---3.3V
GND---GND
DIN---SPI MOSI
CLK---SPI SCK
CS---SPI chip select (Low active)
DC---Data/Command control pin (High for data, and low for command)
RST---External reset pin (Low for reset)
BUSY---Busy state output pin (Low for busy)

Package Content
2.13inch e-Paper HAT x1
RPi screws pack (2pcs) x1
PH2.0 20cm 8Pin x1

Note: Online development resources are provided ,please contact us to get if needed!
