The rs485 to ethernet converter is designed for PC software that uses serial port mode and cannot communicate with networked devices.
VCOM :Receive the data of the specified virtual serial port, and then send the data out in the form of network data, and convert it back to serial data.
It is internally integrated with TCP/IP protocol.User can apply it to device networking communication.
Features:UART Interface:RS485 Terminal(Half Duplex)
Pin Definition: RS485 A+, RS485 B- ,Ground
Network Interface:RJ45 port with 10/100Mbps(Full Duplex/Half Duplex)
Support Auto-MDI/MDIX
Support Work Mode: TCP Server, TCP Client,VCOM
Support virtual serial port(VCOM)
Support Web Browser Settings
Support Baud-rate 300bps~230400bps
Support Reload function
Support Modbus RTU
Support IEEE 802.3、IEEE 802.3u、IEEE 802.3x
Network transmission rate:10/100Mbps
LED Indicator:DC 5V Power,Link/ACT,TX,RX,
Power Consumption<1.8 W
Operating Temperature -10℃-50℃.
Storage Temperature: -20~70°C
Humidity: 10%~90%, no condensation
Size:8x5.7x2.3cm
Support all Windows systems, such as XP/WIN7/WIN8/WIN10
Application:LED display communication data; machine PLC data read, write, and PTZ control; Centralized control of household electrical appliances; access control systems; variety of industrial automation; instrumentation; employee attendance machine; highway toll station; ATM machine.

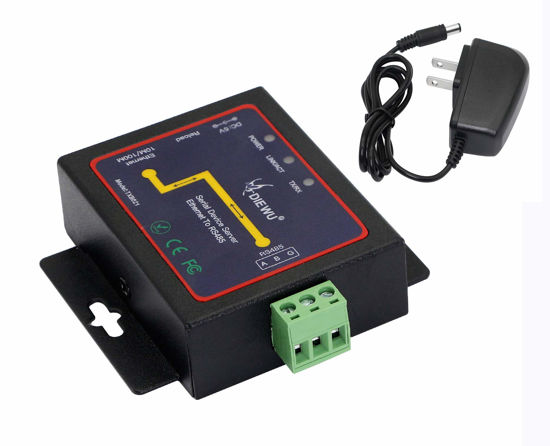

Package:1x Serial Device Server,1x DC 5V Adapter,1x User Manual
