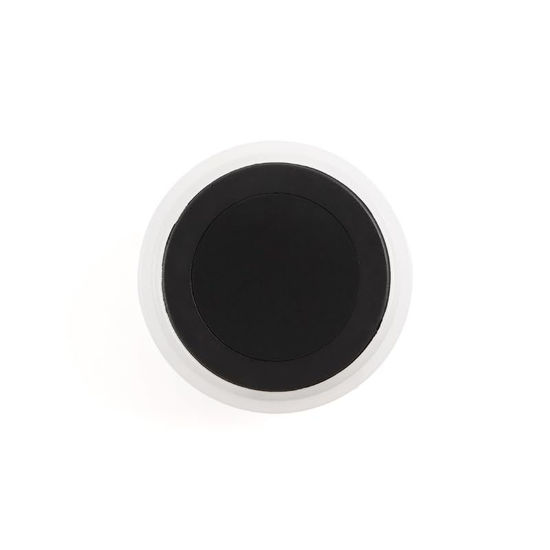

ZW111 is an integrated semiconductor fingerprint module consisting of an active semiconductor fingerprint acquisition sensor and a fingerprint recognition processing chip.
Adopting high-performance and low-power RISCV core, running 360 degree adaptive self-learning algorithm. The semiconductor sensor adopts an active RF acquisition method, supports low-power finger detection, eliminates the need for external finger touch detection chips, has a simple product structure, high integration, and improves product stability Intentional. At the same time, it provides a rainbow light effect that can be customized according to user needs.

#Interface type: 1.0mm X 6-pin terminal head/DuPont wire
PIN1: V_Touch, 3.3V touch power supply (requires constant power supply)
PIN2: TouchOut, wake up IRQ (True: 1; Flase: 0)
PIN3: VCC，3.3V
PIN4: TX (fingerprint module ->MCU)
PIN5: RX (MCU ->fingerprint module)
PIN6: GND, grounded

Semiconductor fingerprint sensor;
The sensor surface is covered with a protective coating;
UART interface;
1.0mm connector, supporting reliable connection;
The fingerprint module supports 3.3V power supply;
ESD protection level>15KV;
Supports storing 40 fingerprint features.
False recognition rate FAR<1/100000;
False rejection rate FRR<3%;
Response speed, feature extraction time<0.06S, single matching time

Supply voltage 3.3V (typical value)
Supply current~40mA (typical value, 3.3V supply)
Sleep current<25uA (fingerprint detection)
Storage capacity comes standard with 40 pieces
Sensor type: capacitive
Resolution 8-bit (256 grayscale values)
Appearance size: φ 21.00mm
Static protection ± 15KV
Natural wear and tear>one million times (repeated pressing at 0.6N)
Working environment -20 ° C~+70 ° C, 40%~85% no condensation
Storage environment -40 ° C~+85 ° C,<85% no condensation
Interface type 1.0mm x 6Pin
