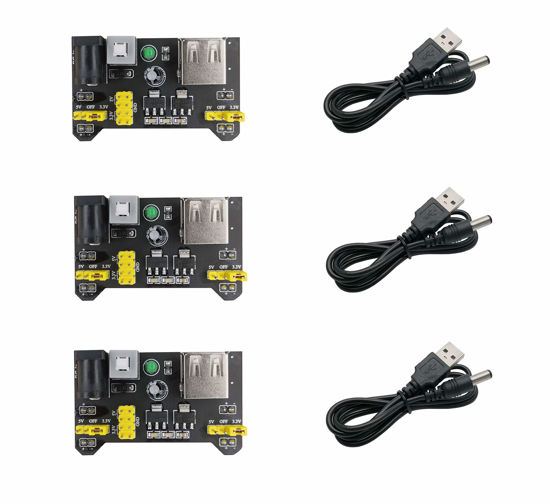

This is a convenient power supply module provide by Excelity, which can be suitable for MB-102 breadboard, supporting 5 V or 3.3 V output.This is a power supply module designed for MB102 breadboards. It is powered by a 5V DC jack with an input voltage of 6.5v-12V. The module has a power button and power indicator LED on board. When you press the power button, the LED will brighten and the module starts working.
The module supports output of 3.3V or 5V. Two circuits are set at top and bottom for separated control and output can be changed between 0V, 3.3V and 5V. You can connect the two rows of pins on the module for 3.3V/5V output, and the 5V USB Type-A port can be used to supply the MCU.
With this power module, you can do experiments and start learning in a more convenient and simpler way!


Features:
1.Apply to MB102 breadboard.
2.Input Voltage: 6.5-12 V (DC) or USB power supply.
3.Output Voltage: 3.3V/5V, can be switched over 0 V, 3.3 V, 5 V.
4.Maximum output current: <700mA
5.Locking ON / OFF Switch, no need to unplug the power adapter.
6.LED Power Indicator indicated when the board is powered up.


Note:
-The module needs an input of 6.5V-12V. If a lower voltage like 5V is provided, you can't get a 5V output, because there should be a voltage difference between input and output, otherwise the module cannot work.
-Do not connect both a DC power plug and powered USB at the same time or damage may result.
-Breadboard NOT included.
