Bands supported :AT&T: B2, B4, B5, B12, B17, B29, B30, B66 | Verizon: B2, B4, B5, B13, B66 | T-Mobile: B2, B4, B5, B12, B66, B71 | Sprint: B25 B26, B41| Band 2 (1900 MHz) | Band 4 (1700/2100 MHz) | Band 5 (850 MHz) | Band 12 (700 MHz) | Band 13 (700 MHz) | Band 14 (700 MHz) | Band 17 (700 MHz) | Band 25 (1900 MHz) | Band 26 (850 MHz) | Band 30 (2100 MHz) | Band 66 (2100 MHz) | Band 71 (600 MHz) | All supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n14, n18, n20, n25, n26, n28, n29, n30 n34, n38, n39, n40, n41, n65, n66, n70, n71, n80, n81, n82, n83, n84, n86, n89, n90, n95

Specifications:
Gain: 10dBi;
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz;
VSWR: < 2.0;
Impedance: 50 ohm;
Direction: Omni-directional;
Feature: Fixed Wall Mount;
Antenna connector: SMA male;
Antenna Cable Length:5M LOW Loss Coaxial Cable;
Adapter Cable: SMA Female to Dual SMA Male with 25cm RG316 Cable;
Dimensions: Appox.23 X 6.5 X 6.5CM;
Operating Temperature: -20°С ~ +80°С;
Storage Temperature: -30°С ~ +85°С;

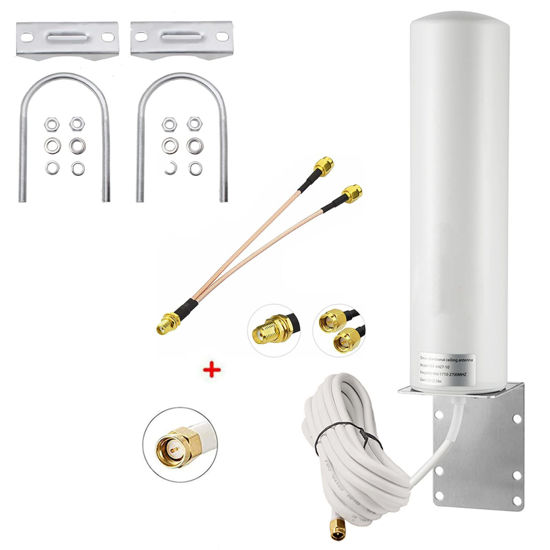

Package List: 1 x Antenna Kit; (As the Picture Shown);1 x Adapter Cable

Note: The installation mast is not included, only the Antenna kit and Adapter Cable.

Installation Reminder: When installing this Omni-directional antenna, please keep it as vertical as possible, In order to get a better signal, please keep the antenna as free as possible (especially the metal baffle) and high enough.

NOTE:*Use 50 Ohm RF coax cables（except RG174 ）,DON’T Use RG59/RG6 coax (75 Ohm cable) - signal will be seriously degraded.
