Description:
Pin Definition:
3V3-----Input power supply voltage (3.3,5V is recommended but not recommended)
GDN-----grounding point
SIO_C---Control clock of SCCB interface (Note: Some low-level microcontrollers require pull-upcontrol, similar to I2C interface)
SIO_D--- Serial data input (out) side of SCCB interface (Note: Some low-level microcontrollers need pull-up control, similar to I2C interface)
VSYNC---frame synchronization signal (output signal)
HREF----Line synchronization signal (output signal)
PCLK----pixel clock (output signal)
D0-D7---Data port (output signal)
RESTE---Reset port (normal use pull up)
PWDN----power consumption selection mode (normal use low)
For OV7670 with fifo please contact us

Key Parameter:
(1) Photoreceptor array 640X480;
(2) IO voltage 2.5V to 3.0V (internal LDO power supply to the core 1.8V);
(3) Power operation 60mW/15fpsVGAYUV;
(4) Sleep <20μA;
(5) Temperature operation - 30°C to 70°C;
(6) Stable operation 0°C to 50°C;
(7) Output format (8-bit)? YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data Light
(8) Size 1/6"
(9) Field of View 25°
(10) Maximum rms rate 30fps VGA Sensitivity 1.3V/(Lux-sec);
(11) Signal to Noise Ratio 46 dB;
(12) Dynamic Range 52dB
(13) Browsing mode line by line;
(14) Electron exposure 1 line to 510 lines;
(15) Pixel area 3.6 μm x 3.6 μm;
(16) Dark current 12 mV/s at 60°C;
Package Included:

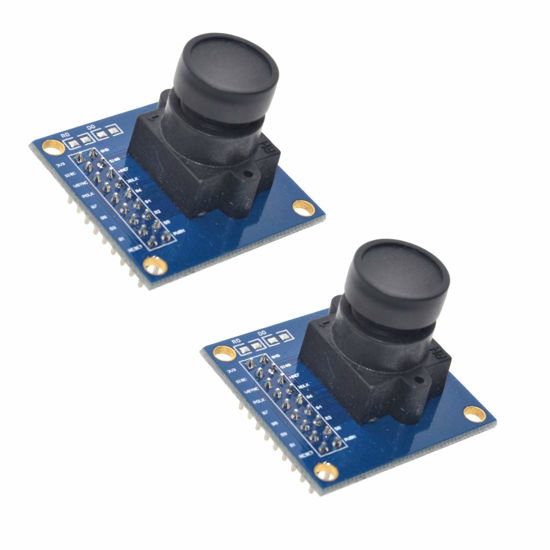

2pcs HiLetgo OV7670 Camera Module
