[SYN115]

Onboard SYN115/F115 SCM chip ASK transmitter chip, SYN115 is applied to 300-450mhz radio frequency remote control field of high performance, simple, easy to use ASK/OOK(on-off Keyed) transmitter chip, the chip is the true sense of “ digital signal input, wireless high frequency AM signal output “monolithic transmitter.

On-board single-chip ASK transmitter chip SYN115/F115

- The module transmitting frequency: 433MHz

- Module output power: <10dBm

- The module trans rate: <10kbps

- The module supply voltage :1.8-3.6V

- PCB size: 15mm*11.8mm

[SYN480R]

Onboard SYN480R MCU wireless ASK/OOK receiving chip SYN480R, which is mainly used in the field of radio frequency remote control. in 433MHz application environment, the sensitivity can reach -107dbm, greatly increasing the receiving distance.

On-board single-chip wireless SYN480R ASK/OOK receiver chip

- The module receiving frequency: 433MHz

- Module receiver sensitivity: -107dBm

- The module transfer rate: 2.5kbps(SWP), 10kbps (FIXED)

- The module supply voltage: 3.3-5.5V

- PCB size: 17.20mm*11.80mm

The wake up function is used to enable the external decoder board and MCU

The FR antenna radiation is very low

Standard CMOS interface controls and decodes data output.

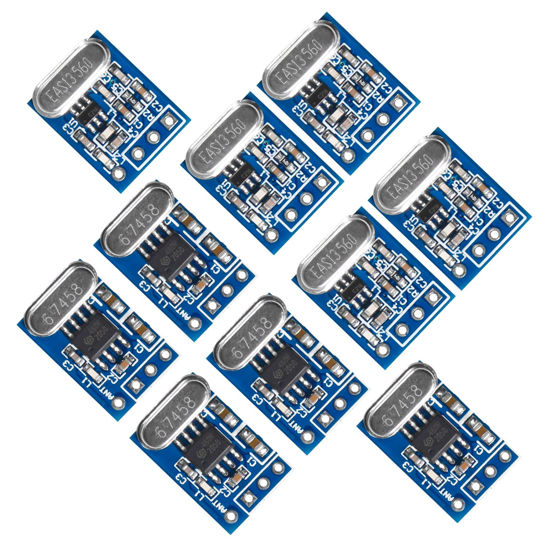

Package included:

5* 433MHZ Transmitter module

5* 433MHZ Receiver module
