Description:

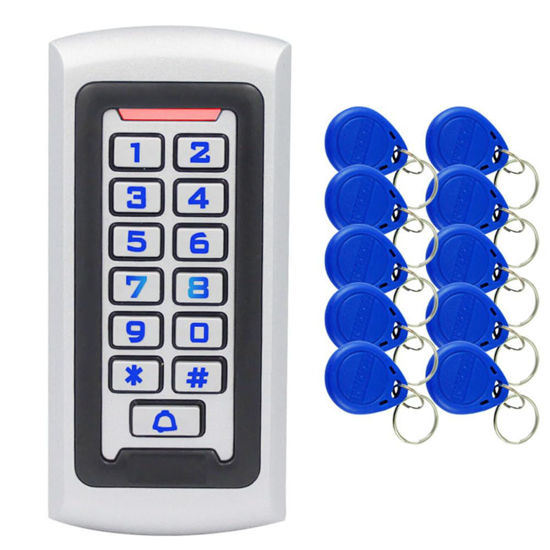

The unit is single door multifunction standalone access controller or a Wiegandoutput keypad card reader. It is suitable for mounting either indoor or outdoor inharsh environments.
It is housed in a strong, sturdy and vandal proof Zinc Alloyelectroplated case which is available in either a bright silver or matt silver finish.
This unit supports up to 2000 users in either a Card,4 digit PIN, or a Card + PINoption.The inbuilt card reader supports 125KHZ EM cards
The unit has many extra features including lock output current short circuitprotection, Wiegand output , and a backlit keypad.
These features make the unitan ideal choice for door access not only for small shops and domestic householdsbut also for commercial and industrial applications such as factories, warehouses,aboratories, banks and prisons.
This Access Controler is Zinc alloy Metal Shell, Anti-vandal, and Anti-explosion
Support 2000 user cards. and guest user settings. Support wiegand input and output, multi-user card authentication, can be set to card reader mode.
Specification:
Features:
●Full programming from the keypad
●2000 users, supports Card, PIN, Card+ PIN
● Can be used as a standalone keypad
●Backlight keys
●Wiegand 26 input for connection to external reader
●Wiegand 26 output for connection to a controller
● Adjustable Alarm time and Door Open time
● Very low power consumption(30mA)
● Fast operating speed,<20ms with 2000 users
●Lock output current short circuit protection
● Easy to install and program
● Built in buzzer
● Red, Yellow and Green LEDS display the working status
