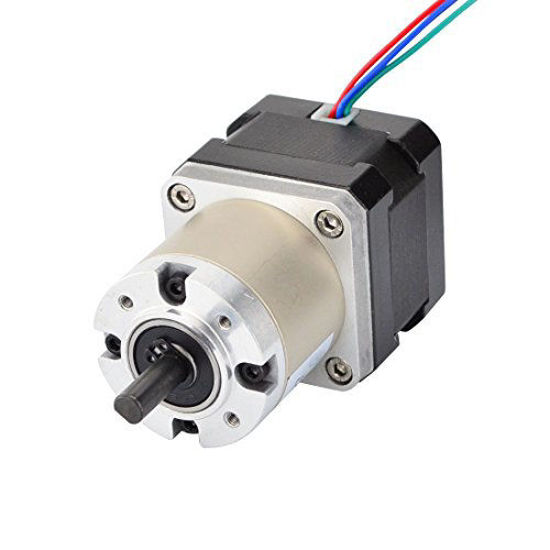

STEPPERONLINE 27:1 Planetary Gearbox Nema 17 Stepper Motor DIY CNC Hobby Camera Robotics

Good Torque Good Speed | 0.067 deg. Step Angle | NEMA 17 bipolar 4-wire | Planetary Gearbox Ratio 26.85:1 | Rated current 0.4A & resistance 30ohms

Manufacturer: STEPPERONLINE

All major credit & debit cards accepted securely:

₹4,756.95

Qty:

Imported from USA to INDIA

Use 220V to 110V Adapter for Electronic appliances

This is a short geared NEMA 17 Stepper motor. It has an integrated planetary gearbox with a 26.85:1 gear ratio, the resolution reach 0.067 deg. step angle.It's a good solution in applications that need very low rotation speeds and/or lots of torque.Electrical Specification: * Manufacturer Part Number: 17HS13-0404S-PG27* Motor Type: Bipolar Stepper* Step Angle: 0.067 deg.* Holding Torque: 3Nm* Rated Current/phase: 0.4A* Phase Resistance: 30ohms* Inductance: 34mH+/-20%(1KHz)Gearbox Specifications: * Gearbox Type: Planetary* Gear Ratio: 26.85:1* Efficiency: 81%* Backlash at No-load: <=1 deg.* Max.Permissible Torque: 3Nm(425oz-in)* Moment Permissible Torque: 5Nm(708oz-in)* Shaft Maximum Axial Load: 50N* Shaft Maximum Radial Load: 100NPhysical Specifications:* Frame Size: 42 x 42mm* Motor Length: 34mm* Gearbox Length: 35mm* Shaft Diameter: 6mm* Shaft Length: 18mm* D-cut Length: 12mm* Number of Leads: 4* Lead Length: 500mm* Weight: 420gConnection: Black(A+), Green(A-), Red(B+), Blue(B-)Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor.Connecting the motor directly to a power supply will destroy the motor.
