20A Power Supply Redundancy Module

Features:

• Suitable for redundant

OutputPower: 150 W; Efficiency: 91 %; OperatingTempRange: -30 to +70 °C; | Frequency: 63 Hz; StorageTemperatureRange: -40 to +80 °C; PowerRating: 153.6 W; LEDDriverModuleType: High Voltage DC > 24V;

Product type - ac to dc regulated switching wall adapter | Efficiency ( percent ) - 76 | Type - switching

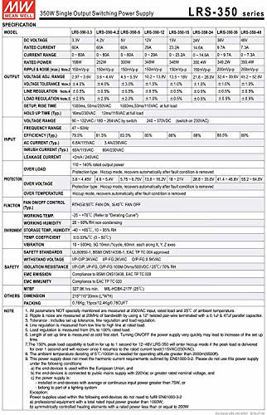

Primary output voltage (vdc): 12 | Output current (a): 29 | Maximum output power (w): 350 | Family: lrs-350 | Input voltage (vac): 90 to 132, 180 to 264

Output Voltage: 12V; Rated Current & Rated Power: 29A, 348W | Input Voltage Range: 90 ~ 132VAC / 180 ~ 264VAC by Switch; | Input Switch Default on 230VAC; UL and CE Certificated | High Efficiency 85% Metal Case, Economical Model | Full Protections: Short Circuit / Overload / Over Voltage /Over Temperature.

Select The Range Of AC Input Through The Switch 110V/220V | Short Circuit Protection,Overload Protection,Over Voltage Protection，Overheating Protection | 100% Full Load Aging Test;No-load Loss <0.75W (In Line With Energy Star requirements) | Lead-free Process, In Line With Environmental RoHS Requirements | Withstand 300Vac High Voltage Input For 5 Seconds

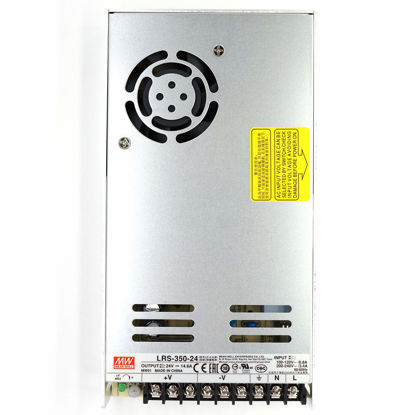

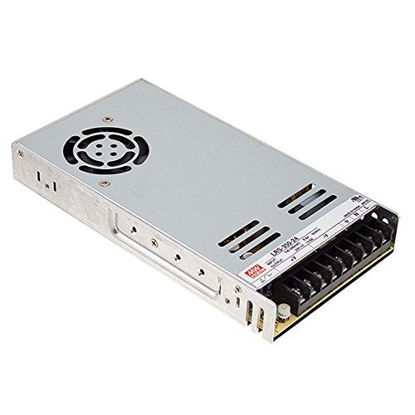

Primary output voltage (vdc): 24 | Output current (a): 14.6 | Maximum output power (w): 350 | Family: lrs-350 | Input voltage (vac): 90 to 132, 180 to 264

Universal AC input voltage,Suitable For DIN Rail TS35,7.5 Or 15 | Short Circuit Protection,Overload Protection,Over Voltage Protection | 100% Full Load Aging Test | Lead-free Process, In Line With Environmental RoHS Requirements;In Line With NEC Class2 / LPS Standard | No-load Loss <0.75W (In Line With Energy Star requirements)

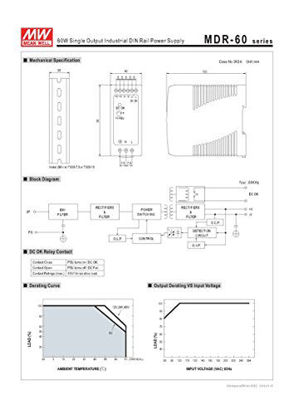

Primary output voltage (vdc): 24 | Output current (a): 2.5 | Maximum output power (w): 60 | Family: mdr-60 | Input voltage (vac): 85 to 264

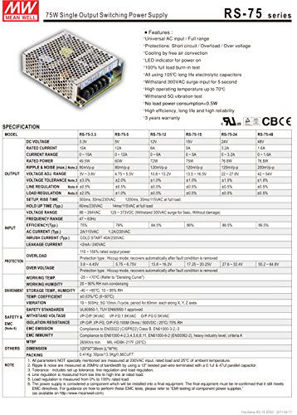

Brand?MEAN WELL
Model?RS-75-5
Output?60W 5V12A
input voltage?85 ~ 264VAC 120 ~ 373VDC
Size:99*82*30mm
Weiht:0.23kg
Global wide range AC input voltage No-load loss <0.5W All capacitors are 105 C long life capacitors Short circuit protection / overload protection / over voltage protection International safety certification: UL/TUV/CB/CE Meet EMS EN50082-2/EN61000-6-2 heavy industry standards Withstand 5 seconds 300VAC high voltage input is not damagedWorking environment temperature up to 70 DEG C 5G is resistant to vibration Small size, high power density LED indicates the working status High efficiency, long life, high reliability Natural draft cooling 100% full load burn-in test Can be used for a variety of extreme environmental applicationsLead free process, in line with the requirements of environmental protection RoHS Taiwan meanwell brand factory in Suzhou 3 years warranty

Size (L x W x H) (inches): 2.5 x 2.0 x 1.1 | Ripple and noise (mV p-p): 80 | Load regulation: 1.5 percent | Line regulation: 0.5 percent | Input: 88-264vac @ 47-63hz

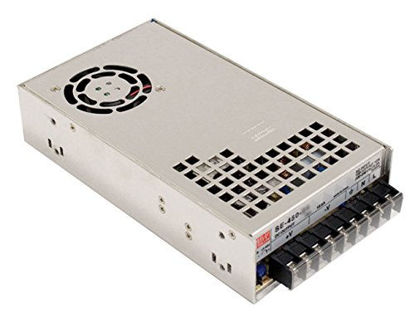

Primary output voltage (vdc): 48 | Output current (a): 9.4 | Maximum output power (w): 451.2 | Family: se-450 | Input voltage (vac): 90 to 264

Primary Output Voltage (VDC): 48 | Output Current (Amps): 3. 9 | Maximum Output Power (Watts): 187. 2 | Input Voltage (VAC): 90 to 305 | Input Frequency (Hz): 47 to 63

Country Of Origin: China | Model Number: 323282 | Item Product Dimension: 3.1" L x 2.0" W x 1.1" H | Item Package Weight: 0.43 lb

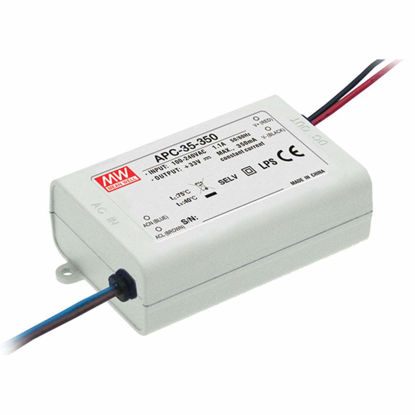

Primary Output Voltage (VDC): 28-100 | Output Current (Amps): 0. 5 | Maximum Output Power (Watts): 25. 2 | Input Voltage (VAC): 90 to 264 | Input Frequency (Hz): 47 to 63

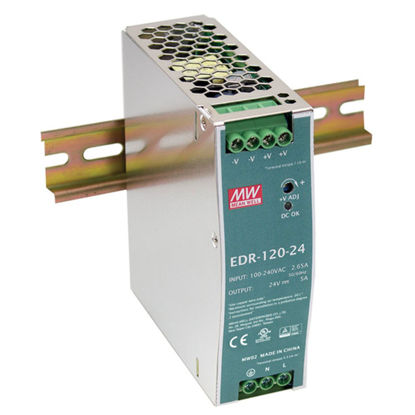

Primary output voltage (vdc): 12 | Output current (a): 10 | Maximum output power (w): 120 | Family: edr-120 | Input voltage (vac): 90 to 264

The product type is 5 Volt DC 5 Amp 25 Watt Open Frame Switching Power Supply | It is manufactured by MEAN WELL | It is manufactured in China

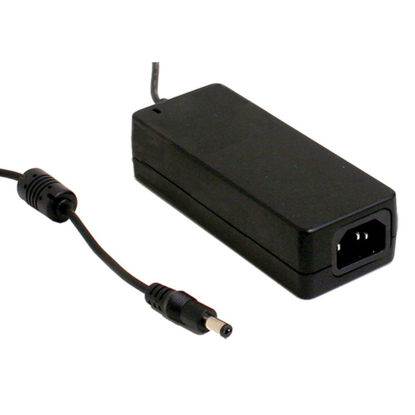

Primary output voltage (vdc): 12 | Output current (a): 5 | Maximum output power (w): 60 | Ac power cord: not included, recommend 38050 | Family: Gst60

Output voltage: 24 volts, output current: 3.75 amps, output power: 90 watts and output connector: 2.5 x 5.5Mm cylindrical female barrel plug, center positive | Input voltage: 90-264 vac @ 47-63 hz and led indicator | Energy efficiency level vi and agency approvals: ul/cul/tuv/bsmi/ccc/fcc/ce | Input voltage (vac) 90 to 264

Primary Output Voltage (VDC): 5 | Output Current (Amps): 2. 4 | Maximum Output Power (Watts): 12 | Input Voltage (VAC): 85 to 264 | Input Frequency (Hz): 47 to 63

Suitable for led lighting and moving sign applications | Compliance to worldwide safety regulations for lighting | Cooling by free air convection | Country of origin: China

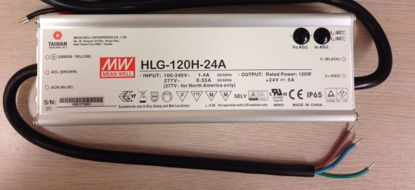

Primary Output Voltage (VDC): 24 | Output Current (Amps): 5 | Maximum Output Power (Watts): 120 | Input Voltage (VAC): 90 to 305 | Input Frequency (Hz): 47 to 63

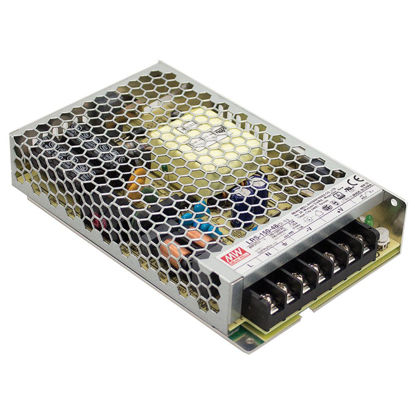

Primary output voltage (vdc): 12 | Output current (a): 12.5 | Maximum output power (w): 150 | Family: lrs-150 | Input voltage (vac): 85 to 132, 170 to 264

Ac input range selectable by switch | Withstand 300Vac surge input for 5 second | Not load power consumption <0.5W | Miniature size and 1U low profile | High operating temperature up to 70 degree c

Primary output voltage (vdc): 12 | Output current (a): 1.67 | Maximum output power (w): 20 | Family: mdr-20 | Input voltage (vac): 85 to 264

Size (L x W x H) (inches): 3.0 x 2.0 x 1.1 | Ripple and noise (mV p-p): 120 | Load regulation: 0.5 percent | Line regulation: 0.5 percent | Input: 88-264vac @ 47-63hz

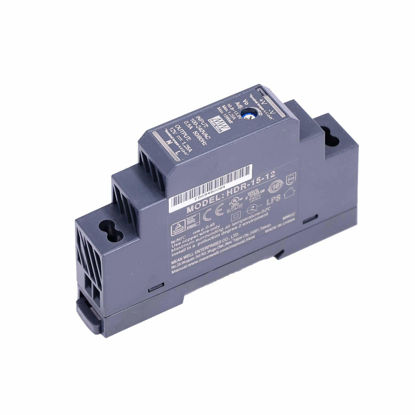

Primary Output Voltage (VDC): 12 | Output Current (Amps): 1. 25 | Maximum Output Power (Watts): 15 | Input Voltage (VAC): 85 to 264 | Input Frequency (Hz): 47 to 63

This model operates at 25W/700mA. | Applications include LED-based decorative, architectural lighting, stage/theater lighting, LED electronic displays.

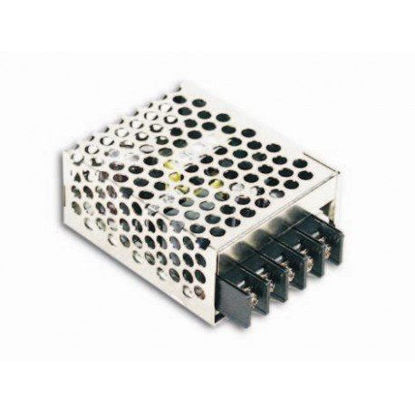

Output Voltage: 24V | Approx. Wattage: 15W | Protections: Short circuit / Overload / Over voltage | Warranty: 3 Years Warranty

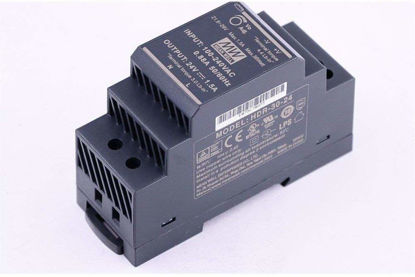

Primary Output Voltage (VDC): 24 | Output Current (Amps): 1. 5 | Maximum Output Power (Watts): 36 | Input Voltage (VAC): 85 to 264 | Input Frequency (Hz): 47 to 63
